Bike of the Month Feb 2020.

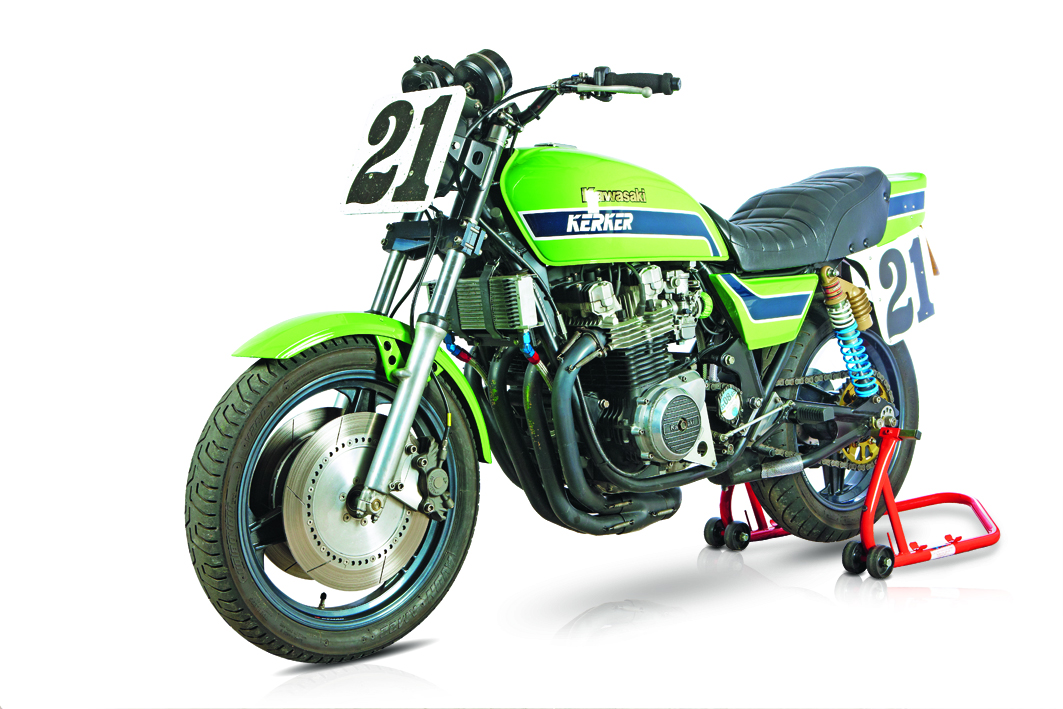

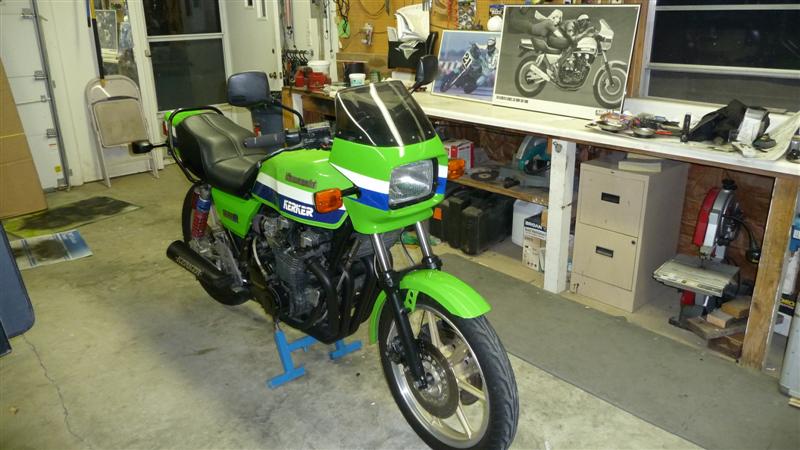

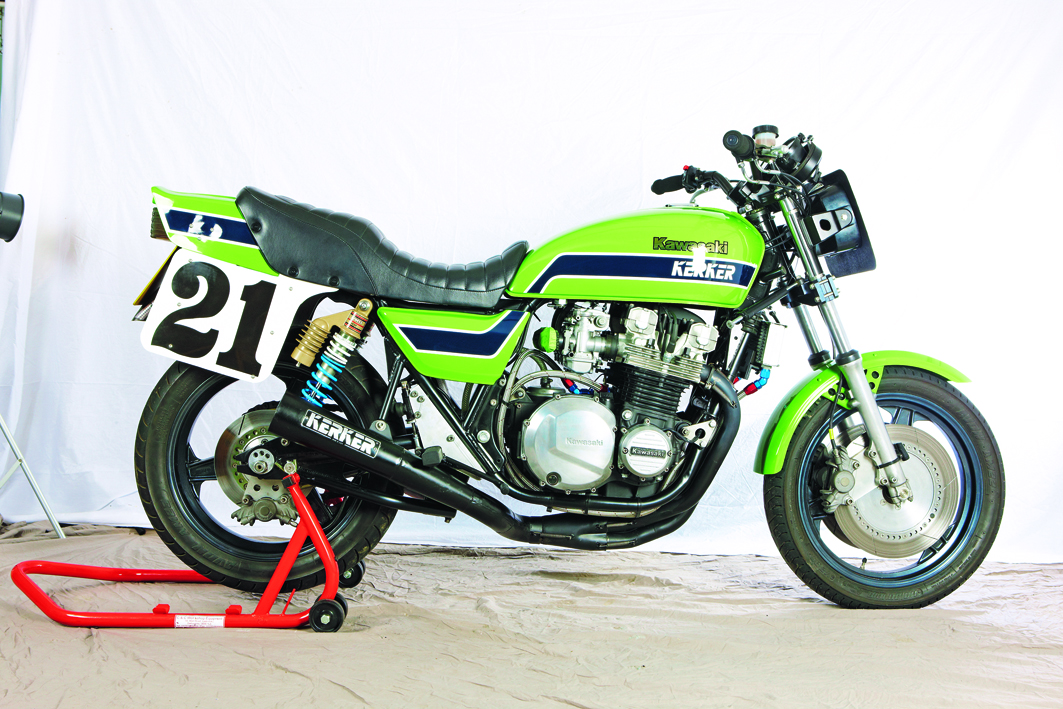

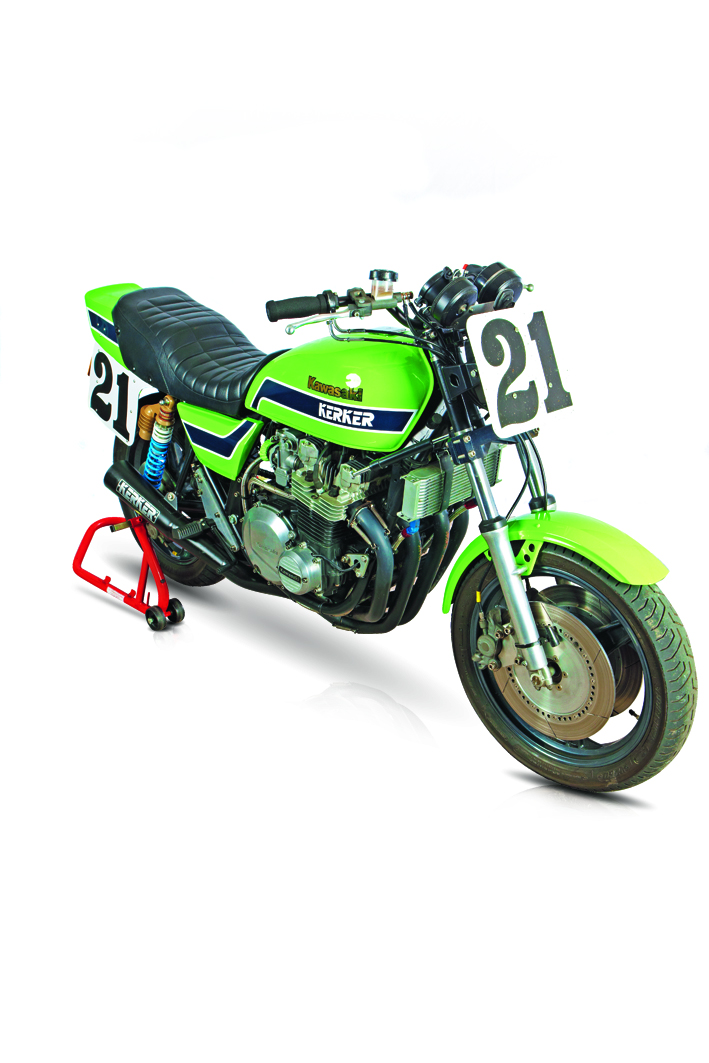

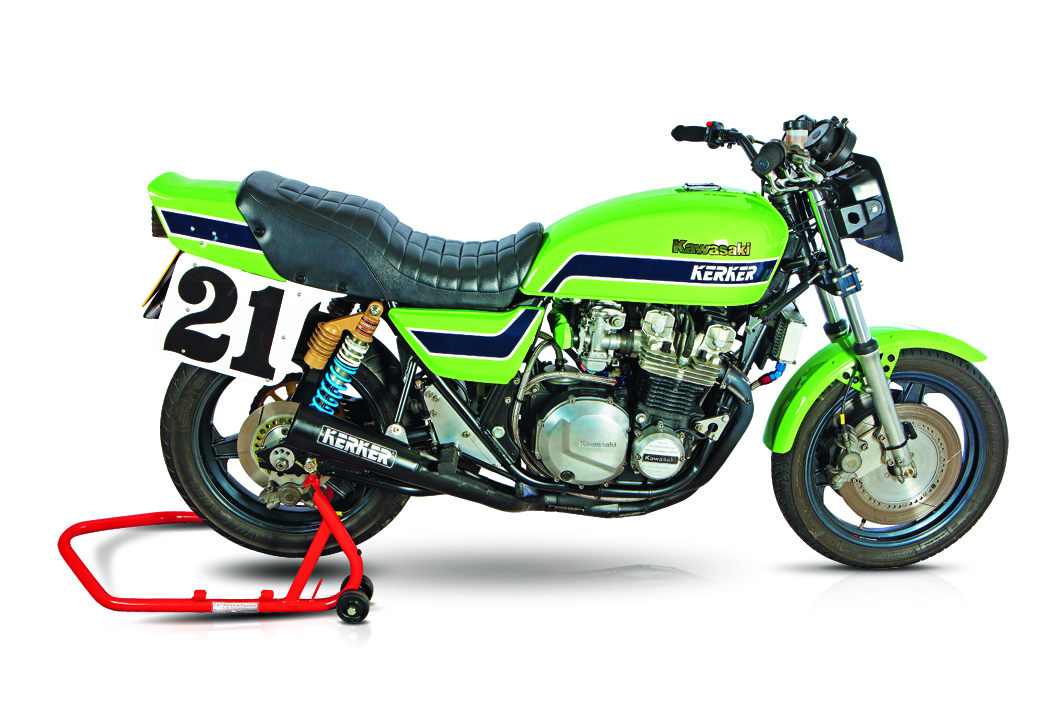

1982 Kawasaki KZ1000R-S1 race clone,
Hand built over a 3 year span.

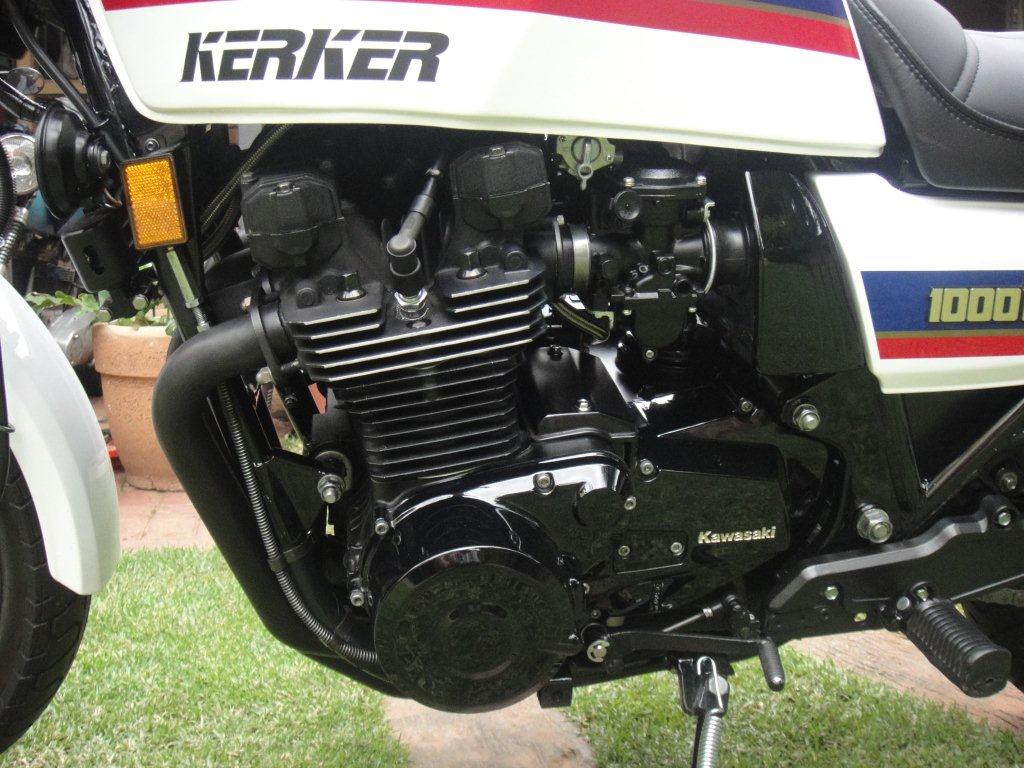

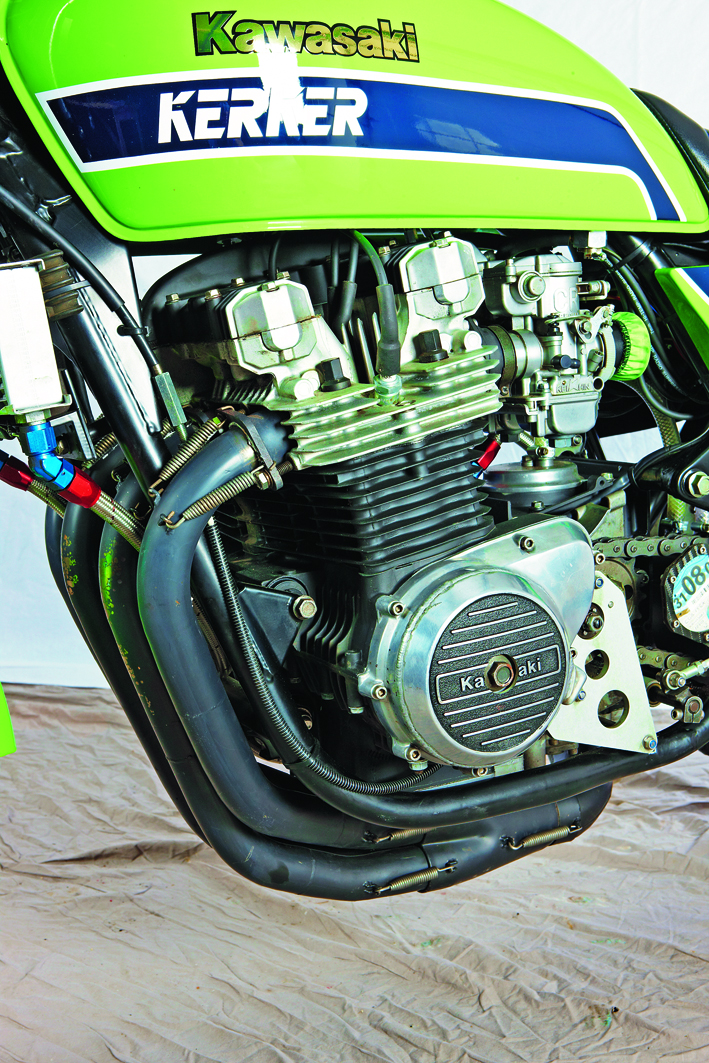

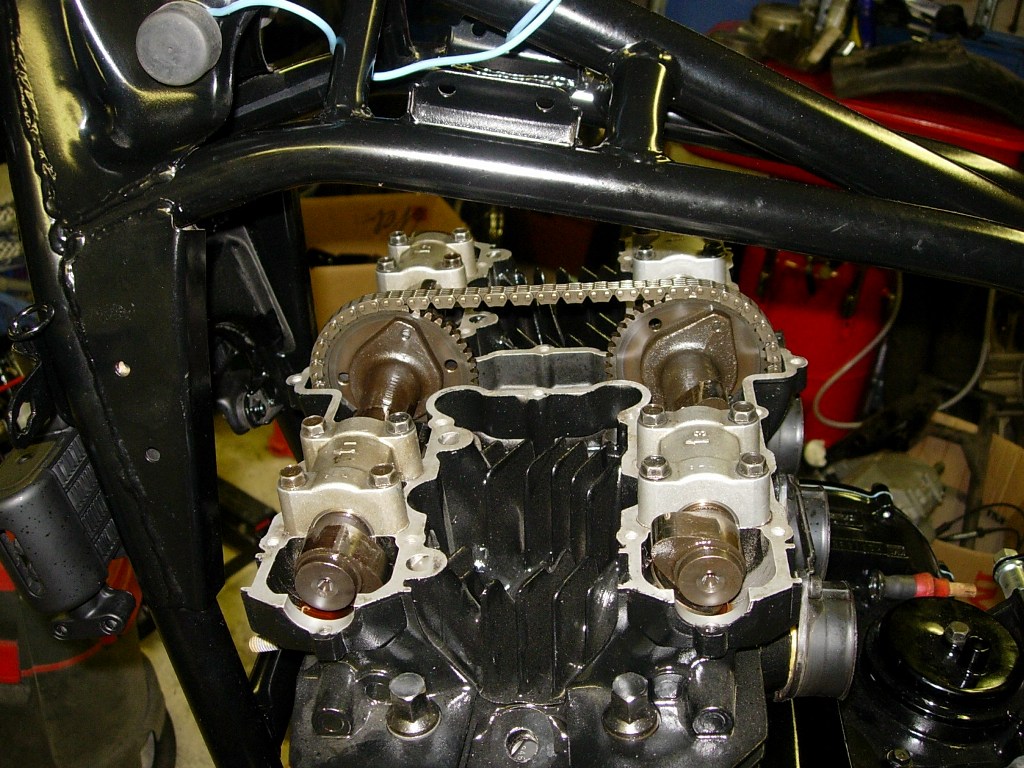

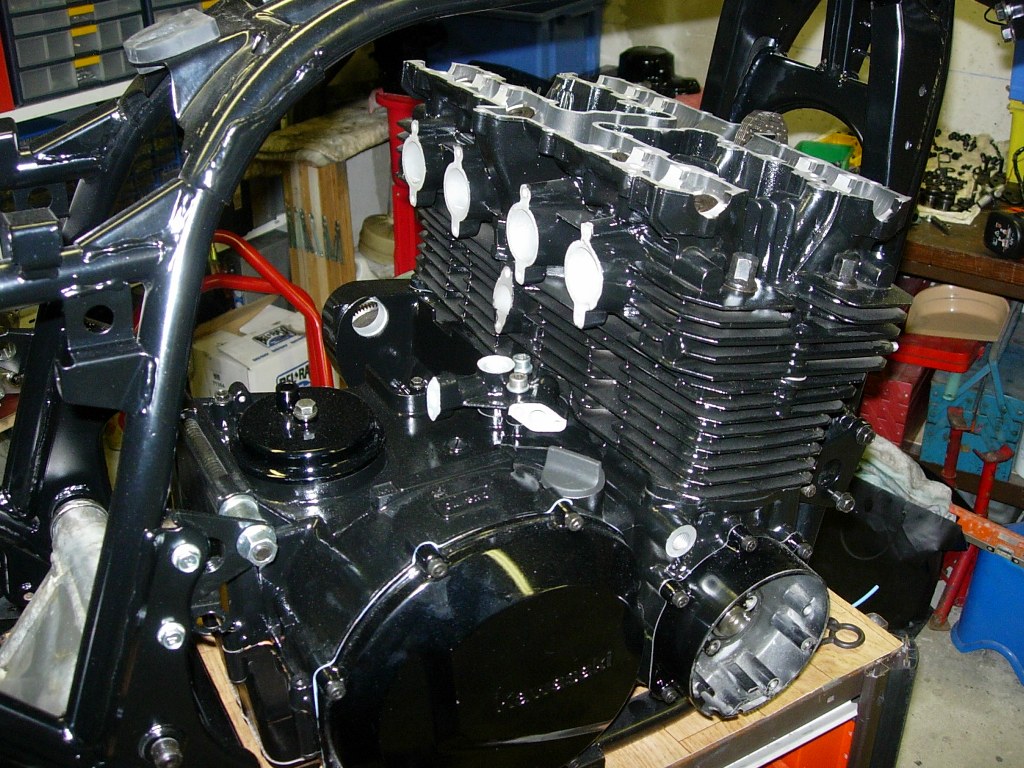

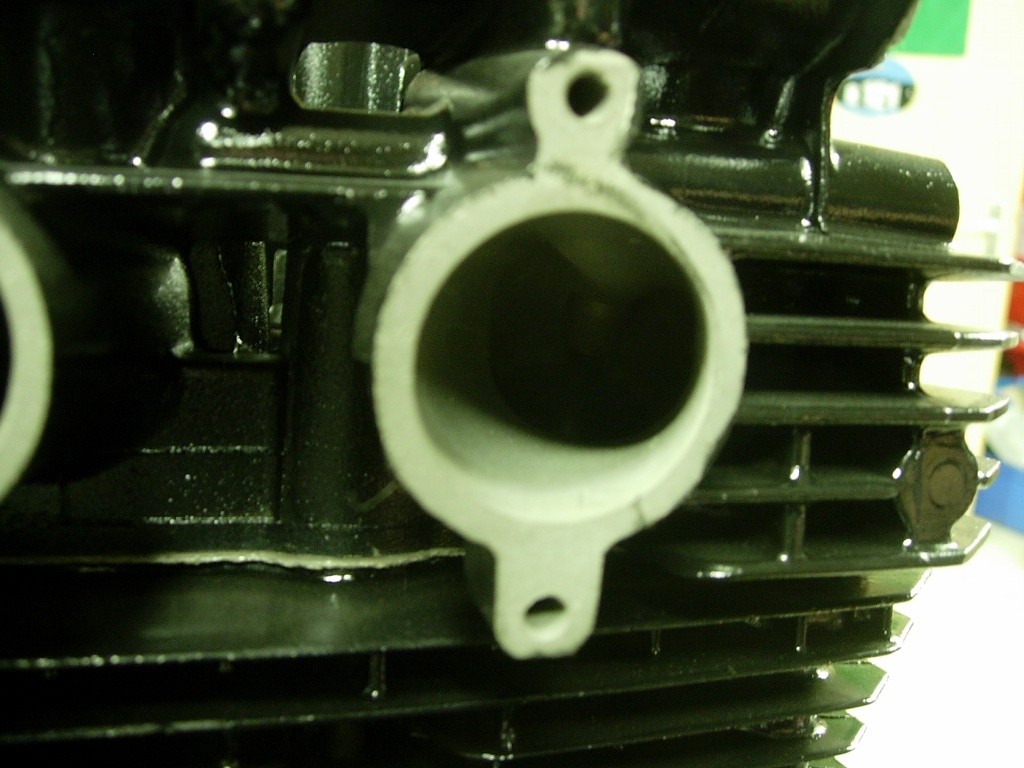

Kawasaki race engine expert, the late Larry Cavanaugh, carefully did all of the race porting and building of this cylinder head.
Oversize stainless valves
Web 110 race cams,
(Full race head gasket also during build.)
1136cc forged Weisco high comp piston big bore kit.
Approx 800 miles on engine rebuild.
APE thick diameter race engine head studs, APE tall race nuts. (both needed for high comp/race)
New Dyna ignition system with ignition plate, ignition coils.
Dyna 2000 computer box with 5 performance maps. (set to race# 5) Dyna adjustable rev limiter. (set to 10,000rpm)

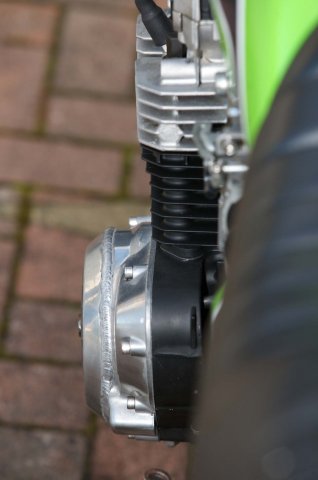

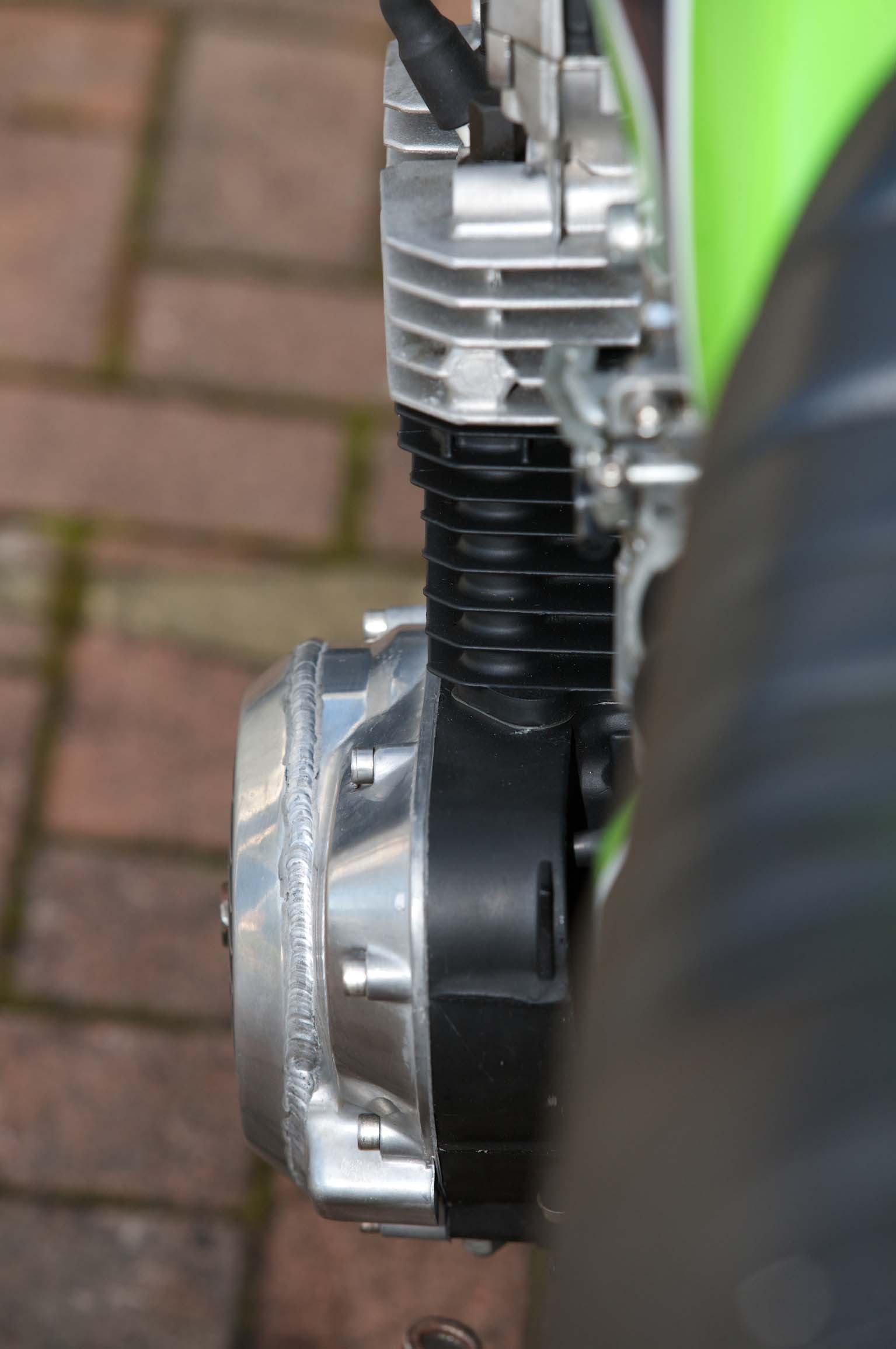

Custom Works Aluminum S1 race replica tapered cone ignition cover and plate.
Keihin CR 33 racing carbs. (with choke)
K&N oiled air pod filters.

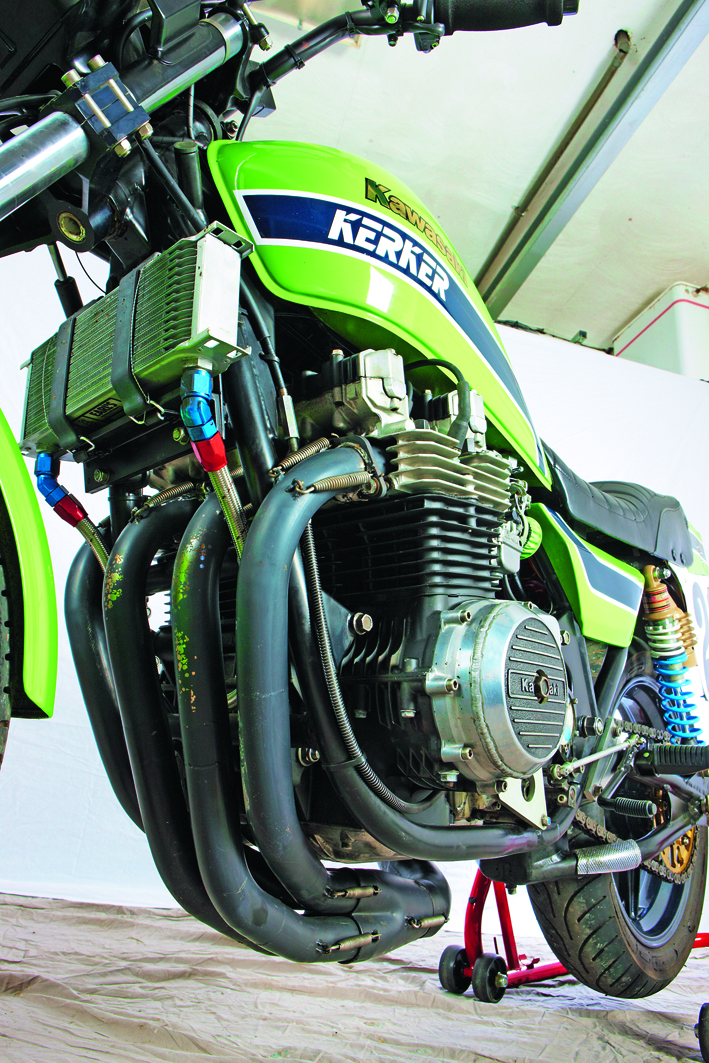

Special large diameter works racing pipe.
Has spring quick remove mounts and a proper race tuned merge collector. (We got an 8hp increase over the regular race Kerker)

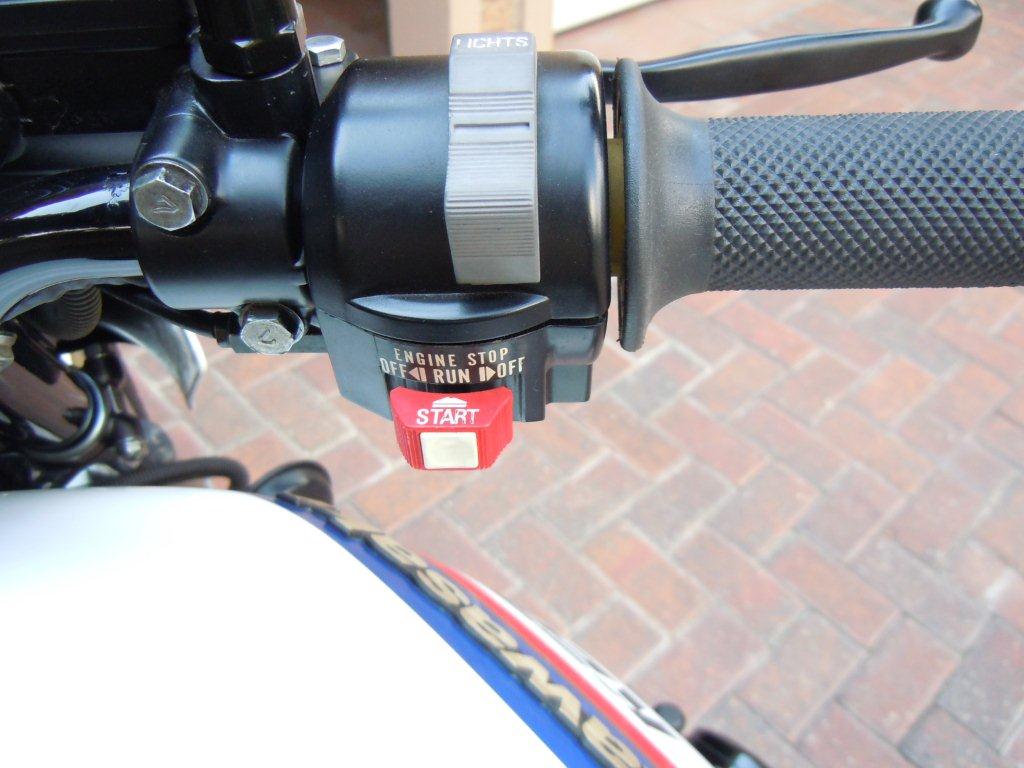

Genuine S1 race bike 1/4 turn throttle with NOS S1 racebike heavy throttle cables
This bike has a strong powerband and is now tuned for sea level.
After 18 dyno runs:
126.9 Rear wheel HP.
Tuned on Factory Pro Eddy Current dyno.
(True HP numbers, not "dynojet" numbers. Have all charts)
(Estimated engine HP is 137-142 )
S1 full race replica brake calipers from Japan.
(Fully rebuilt new Japanese seals in all calipers.)
New sintered metal race brake pads from Japan.
US Made custom steel braided brake lines.
NOS Kawasaki fork lowers from Japan. Adjustable upper tubes are fully rebuildable. (circlip removes racing oil pumps in both forks.)
Motul 20 weight in forks.
Race tech springs in forks. (200 lb plus rider)

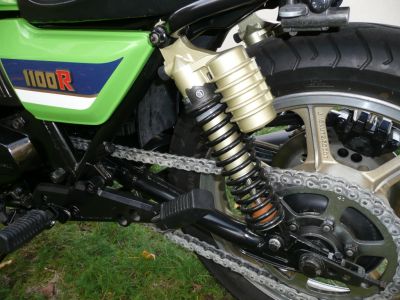

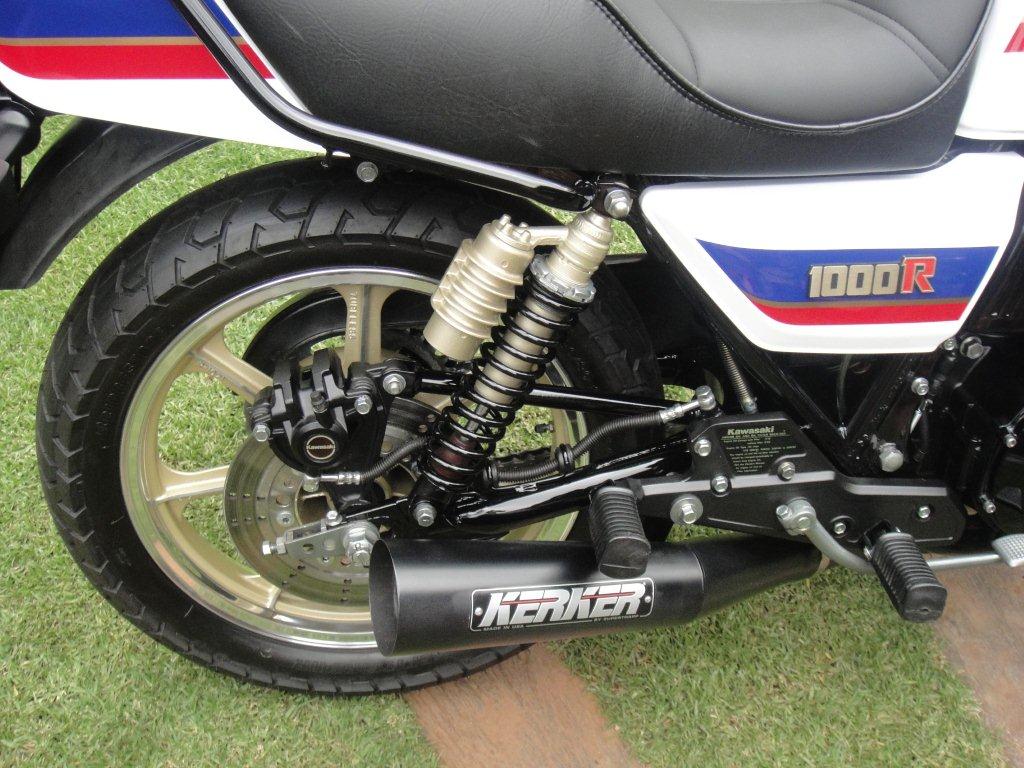

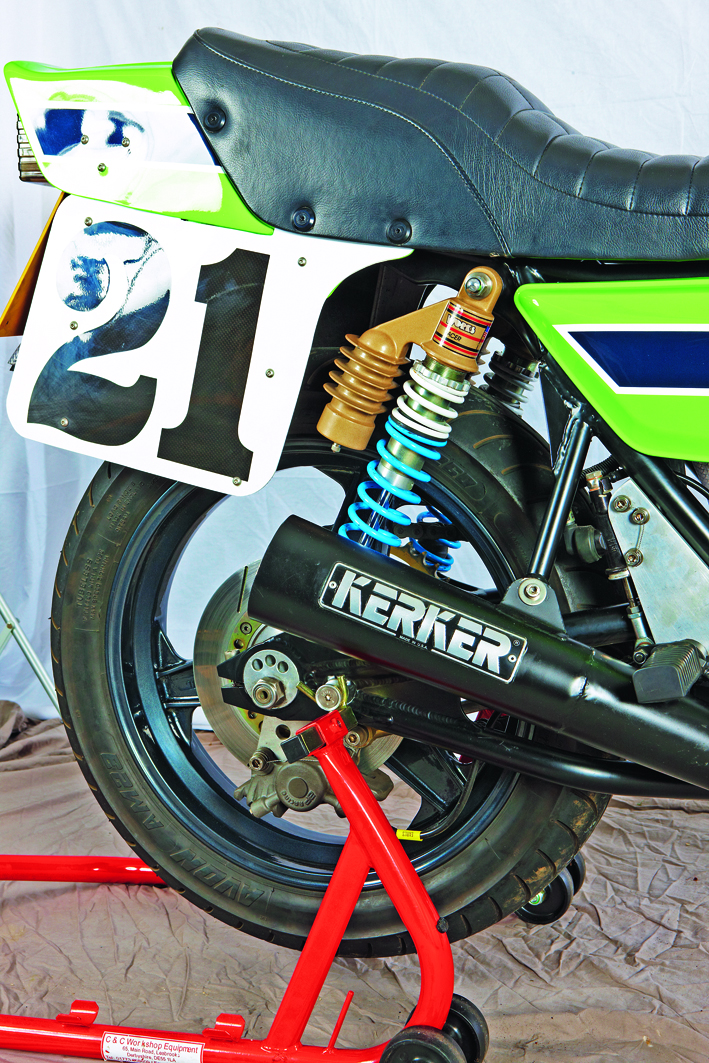

Works Performance racer rear shocks, fully rebuilt with new seals and new bladders.
Works shocks were rebuilt and set up by an 1980's pro superbike team shock builder (tuned to 200-240lb rider inc gear).
US made massive KZ1000R-S1 works replica handmade aluminum triple trees, (triple clamps)

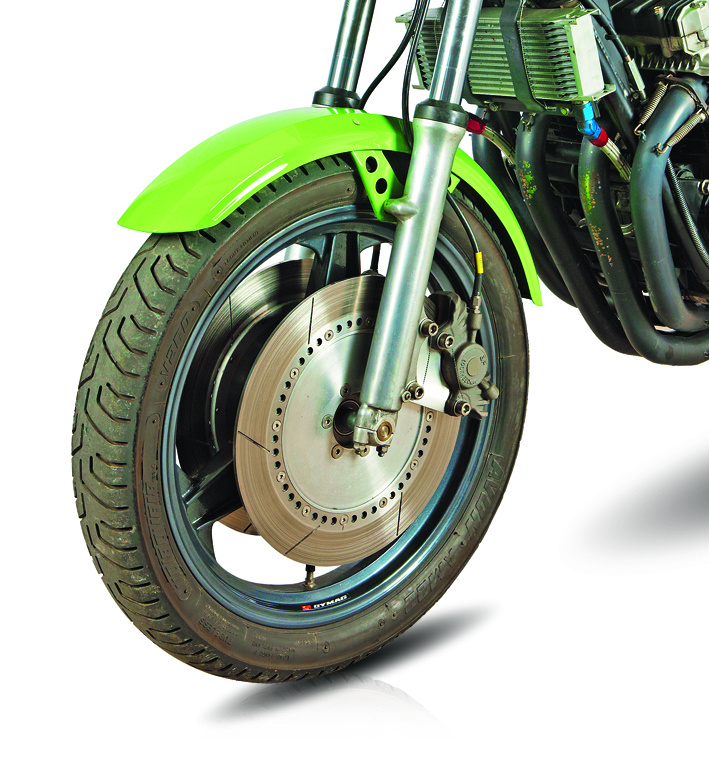

Huge Japanese made 330 mm S1 replica solid brake disks with aluminum carriers.
(Use Motul Dot 5 always.)

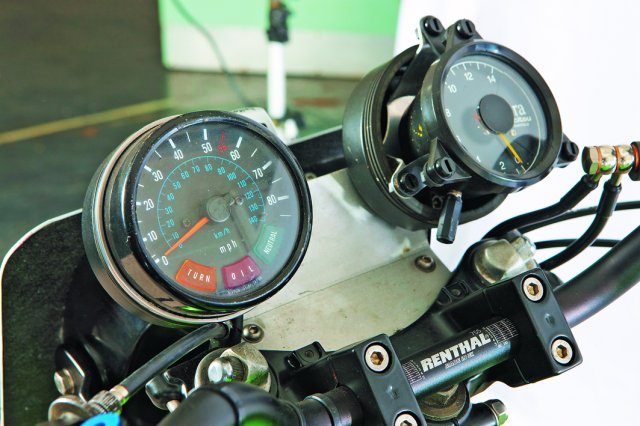

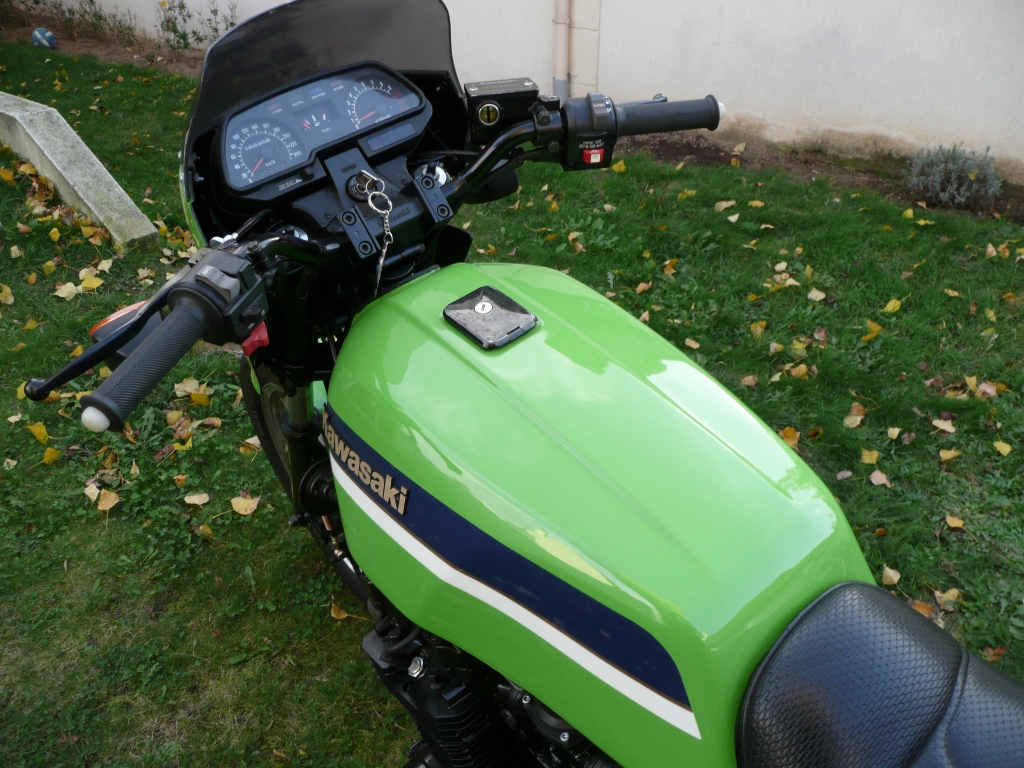

Rare 160mph/250kmph speedo
NOS factory Kawasaki Tachometer.

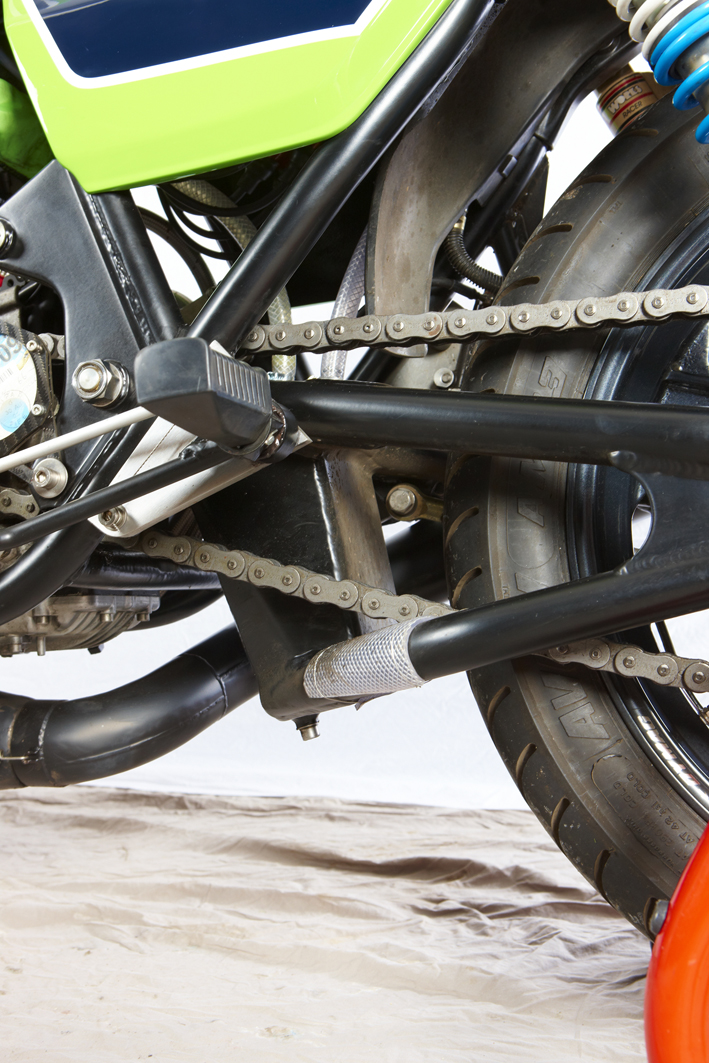

S1 race replica handmade aluminum swingarm, (with built in catch can for racing.)
Marvic Classic 7 spoke magnesium race rims (new not old stock) 4 1/2" X18 and 3"x18 Genuine
Front rim has speedo drive, rear rim has cush drive. Both nice for street riding.
New Metzler Roadtec Interact Z8 M (soft compound) tires
160/60/ZR18- rear 120/70/ZR18 front
Frame has S1 superbike racing stiffeners added
Antigravity 3 lb battery.
Hollow grade 5 titanium front axle (US made titanium)
Full forged and formed titanium fastener kit on bike. (All USA made forged and formed titanium fasteners)
Full stainless engine fastener kit
530 race chain made in Japan, High grade aluminum rear sprockets custom made in USA.
Many NOS parts on this bike throughout.
What to expect when riding:
This bike is for the experienced rider only.
The brakes are very strong, the whole package handles very tight, solid and predictable.
Power is strong with good low rpm torque, and very strong up to 5500rpm.
After 5500rpm engine starts to hit a 2 stroke like powerband, as front the end is lifting or gets light. Sometimes even in 3rd gear.
Although this bike is a bit of a handful at times, it can also be ridden sensibly on the road. But care must be taken.
